Examples

Digital hologram of a single cell

This example illustrates how qpretrieve can be used to analyze digital holograms. The hologram of a single myeloid leukemia cell (HL60) was recorded using off-axis digital holographic microscopy (DHM). Because the phase-retrieval method used in DHM is based on the discrete Fourier transform, there always is a residual background phase tilt which must be removed for further image analysis. The setup used for recording these data is described in reference [SSM+15].

Note that the fringe pattern in this particular example is over-sampled in real space, which is why the sidebands are not properly separated in Fourier space. Thus, the filter in Fourier space is very small which results in a very low effective resolution in the reconstructed phase.

hologram_cell.py

import matplotlib.pylab as plt
import numpy as np
import qpretrieve
from skimage.restoration import unwrap_phase

# load the experimental data
edata = np.load("./data/hologram_cell.npz")

holo = qpretrieve.OffAxisHologram(data=edata["data"])
holo.run_pipeline(
    # For this hologram, the "smooth disk"
    # filter yields the best trade-off
    # between interference from the central
    # band and image resolution.
    filter_name="smooth disk",
    # Set the filter size to half the distance
    # between the central band and the sideband.
    filter_size=1/2)
bg = qpretrieve.OffAxisHologram(data=edata["bg_data"])
bg.process_like(holo)

phase = (holo.get_data_with_input_layout(holo.phase) -
         bg.get_data_with_input_layout(bg.phase))
fft_origin = holo.get_data_with_input_layout(holo.fft_origin)
fft_filtered = holo.get_data_with_input_layout(holo.fft_filtered)


# plot the intermediate steps of the analysis pipeline
fig = plt.figure(figsize=(8, 10))

ax1 = plt.subplot(321, title="cell hologram")
map1 = ax1.imshow(edata["data"], interpolation="bicubic", cmap="gray")
plt.colorbar(map1, ax=ax1, fraction=.046, pad=0.04)

ax2 = plt.subplot(322, title="bg hologram")
map2 = ax2.imshow(edata["bg_data"], interpolation="bicubic", cmap="gray")
plt.colorbar(map2, ax=ax2, fraction=.046, pad=0.04)

ax3 = plt.subplot(323, title="Fourier transform of cell")
map3 = ax3.imshow(np.log(1 + np.abs(fft_origin)), cmap="viridis")
plt.colorbar(map3, ax=ax3, fraction=.046, pad=0.04)

ax4 = plt.subplot(324, title="filtered Fourier transform of cell")
map4 = ax4.imshow(np.log(1 + np.abs(fft_filtered)), cmap="viridis")
plt.colorbar(map4, ax=ax4, fraction=.046, pad=0.04)

ax5 = plt.subplot(325, title="retrieved phase [rad]")
map5 = ax5.imshow(phase, cmap="coolwarm")
plt.colorbar(map5, ax=ax5, fraction=.046, pad=0.04)

ax6 = plt.subplot(326, title="unwrapped phase [rad]")
map6 = ax6.imshow(unwrap_phase(phase), cmap="coolwarm")
plt.colorbar(map6, ax=ax6, fraction=.046, pad=0.04)

# disable axes
[ax.axis("off") for ax in [ax1, ax2, ax3, ax4, ax5, ax6]]

plt.tight_layout()
plt.show()

Filter visualization

This example visualizes the different Fourier filtering masks available in qpretrieve.

filter_visualization.py

import matplotlib.pylab as plt
import numpy as np
import qpretrieve
from skimage.restoration import unwrap_phase

# load the experimental data
edata = np.load("./data/hologram_cell.npz")

prange = (-1, 5)
frange = (0, 12)

results = {}

for fn in qpretrieve.filter.available_filters:
    holo = qpretrieve.OffAxisHologram(data=edata["data"])
    holo.run_pipeline(
        filter_name=fn,
        # Set the filter size to half the distance
        # between the central band and the sideband.
        filter_size=1/2)
    bg = qpretrieve.OffAxisHologram(data=edata["bg_data"])
    bg.process_like(holo)
    # use the 2d layout
    phase = unwrap_phase(holo.get_data_with_input_layout(holo.phase) -
                         bg.get_data_with_input_layout(bg.phase))
    mask = np.log(1 + np.abs(
        holo.get_data_with_input_layout(holo.fft_filtered)))
    results[fn] = mask, phase

num_filters = len(results)

# plot the properties of `qpi`
fig = plt.figure(figsize=(8, 22))

for row, name in enumerate(results):
    ax1 = plt.subplot(num_filters, 2, 2*row+1)
    ax1.set_title(name, loc="left")
    ax1.imshow(results[name][0], vmin=frange[0], vmax=frange[1])

    ax2 = plt.subplot(num_filters, 2, 2*row+2)
    map2 = ax2.imshow(results[name][1], cmap="coolwarm",
                      vmin=prange[0], vmax=prange[1])
    plt.colorbar(map2, ax=ax2, fraction=.046, pad=0.02, label="phase [rad]")

    ax1.axis("off")
    ax2.axis("off")

plt.tight_layout()
plt.show()

Adequate resolution-scaling via cropping in Fourier space

Applying filters in Fourier space usually means setting a larger fraction of the data in Fourier space to zero. This can considerably slow down your analysis, since the inverse Fouier transform is taking into account a lot of unused frequencies.

By cropping the Fourier domain, the inverse Fourier transform will be faster. The result is an image with fewer pixels (lower resolution), that contains the same information as the unscaled (not cropped in Fourier space) image. There are possibly two disadvantages of performing this cropping operation:

1. The resolution of the output image (pixel size) is not the same as that of the input (interference) image. Thus, you will have to adapt your colocalization scheme.

2. If you are using a filter with a non-binary mask (e.g. gauss), then you will lose (little) information when cropping in Fourier space.

What happens when you set filter_name=”smooth disk”? Cropping with scale_to_filter=True is too narrow, because now there are higher frequencies contributing to the final image. To include them, you can set scale_to_filter to a float, e.g. scale_to_filter=1.2.

fourier_scale.py

import matplotlib.pylab as plt
import numpy as np
import qpretrieve
from skimage.restoration import unwrap_phase

# load the experimental data
edata = np.load("./data/hologram_cell.npz")

results = []

holo = qpretrieve.OffAxisHologram(data=edata["data"])
bg = qpretrieve.OffAxisHologram(data=edata["bg_data"])
ft_orig = np.log(1 + np.abs(
    holo.get_data_with_input_layout(holo.fft_origin)), dtype=float)

holo.run_pipeline(filter_name="disk", filter_size=1 / 2,
                  scale_to_filter=False)
bg.process_like(holo)
phase_highres = unwrap_phase(holo.get_data_with_input_layout(holo.phase) -
                             bg.get_data_with_input_layout(bg.phase))
ft_highres = np.log(1 + np.abs(
    holo.get_data_with_input_layout(holo.fft.fft_used)), dtype=float)

holo.run_pipeline(filter_name="disk", filter_size=1 / 2,
                  scale_to_filter=True)
bg.process_like(holo)
phase_scalerad = unwrap_phase(holo.get_data_with_input_layout(holo.phase) -
                              bg.get_data_with_input_layout(bg.phase))
ft_scalerad = np.log(1 + np.abs(
    holo.get_data_with_input_layout(holo.fft.fft_used)), dtype=float)

# plot the intermediate steps of the analysis pipeline
fig = plt.figure(figsize=(8, 10))

ax1 = plt.subplot(321, title="cell hologram")
map1 = ax1.imshow(edata["data"], interpolation="bicubic", cmap="gray")
plt.colorbar(map1, ax=ax1, fraction=.046, pad=0.04)

ax2 = plt.subplot(322, title="Fourier transform")
map2 = ax2.imshow(ft_orig, cmap="viridis")
plt.colorbar(map2, ax=ax2, fraction=.046, pad=0.04)

ax3 = plt.subplot(323, title="Full, filtered Fourier transform")
map3 = ax3.imshow(ft_highres, cmap="viridis")
plt.colorbar(map3, ax=ax3, fraction=.046, pad=0.04)

ax4 = plt.subplot(324, title="High-res phase [rad]")
map4 = ax4.imshow(phase_highres, cmap="coolwarm")
plt.colorbar(map4, ax=ax4, fraction=.046, pad=0.04)

ax5 = plt.subplot(325, title="Cropped, filtered Fourier transform")
map5 = ax5.imshow(ft_scalerad, cmap="viridis")
plt.colorbar(map5, ax=ax5, fraction=.046, pad=0.04)

ax6 = plt.subplot(326, title="Low-res, same-information phase [rad]")
map6 = ax6.imshow(phase_scalerad, cmap="coolwarm")
plt.colorbar(map6, ax=ax6, fraction=.046, pad=0.04)

# disable axes
[ax.axis("off") for ax in [ax1, ax2, ax5, ax6]]

plt.tight_layout()
plt.show()

Fourier Transform speed benchmarks for OAH

Benchmark your own data

You can use this script to benchmark your data and find the optimum batch size and FFTFilter. Just load your data in place of the input_data_3d and input_data_bg_3d.

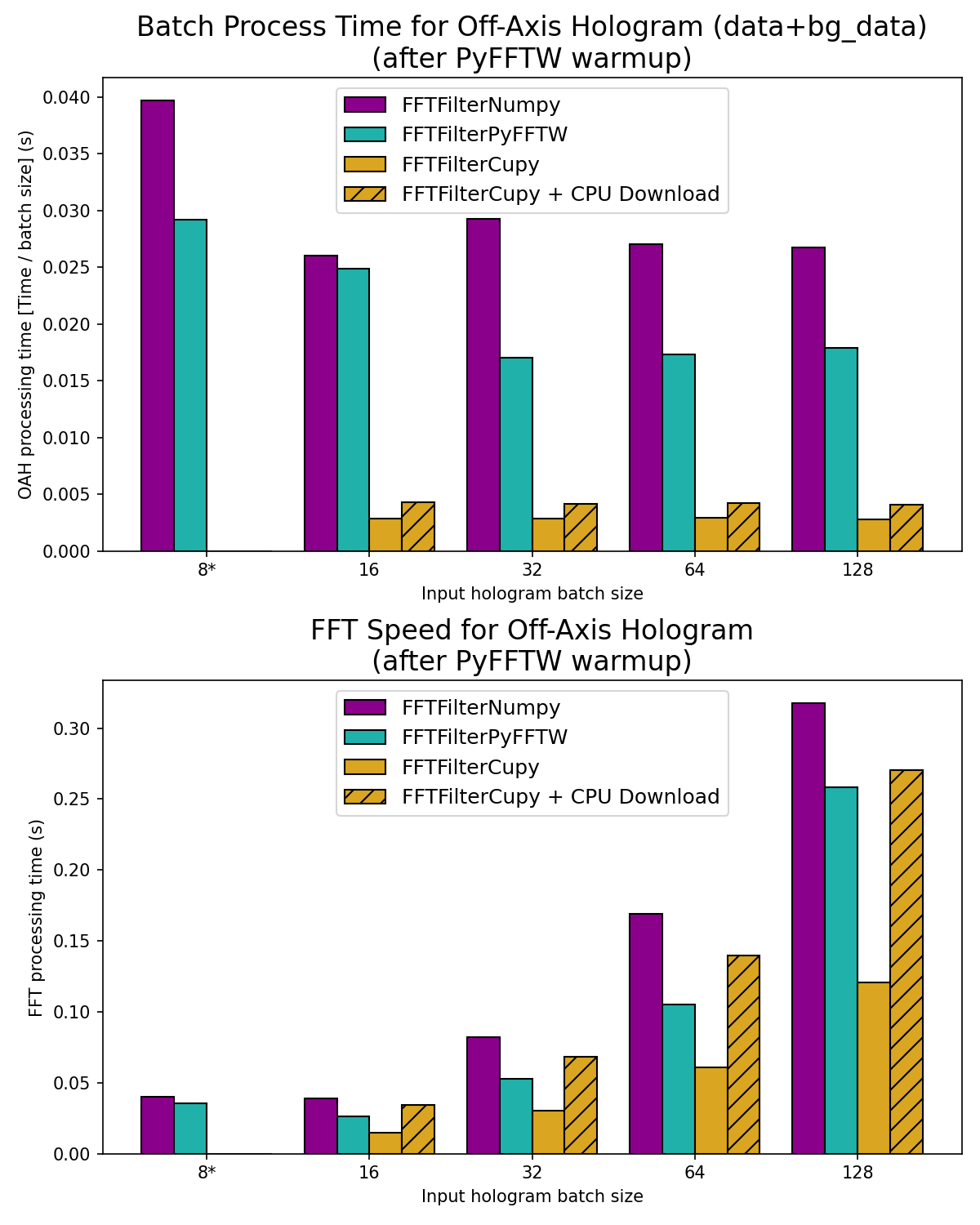

This example visualizes the speed for different batch sizes for the available FFT Filters.

In the first graph “Batch Processing Time”, the y-axis shows the speed - normalised by batch size - of an Off-Axis Hologram class OffAxisHologram, including background data processing. From this graph, we can conclude that:

• Optimum batch size is between 32 and 128 for 256x256pix imgs (incl padding), but will be limited by your computer’s RAM.

• Some Notes:

  • The batch size is the size of the raw hologram 3D stack in z.

  • Each pipeline runs 4 FFTs (Data FFT and iFFT + background Data FFT and iFFT). For example, batch size of 8 runs 8*4=32 FFTs.

  • For CuPy, the graphs do not include the time taken to transfer the GPU arrays back to the CPU.

In the second graph “FFT Speed for Off-Axis Hologram”, the y-axis shows the speed of a single FFT. From this graph, we can conclude that:

• Optimum batch size for CuPy and PyFFTW is between 16 and 64 for 256x256pix imgs (incl padding). This may change depending on your machine.

Notes on why each FFT method is run twice

In the first run, python must load extra modules, which makes benchmarking unreliable. Therefore, the second run is used for timing.

This is especially important for PyFFTW, as PyFFTW generates a “wisdom” on its first run, which defines the fastest way to do subsequent Fourier transforms. A wisdom is generated for each batch size. Click here for more information on exporting and importing wisdoms with PyFFTW.

*large value artifact for batch size 8 for FFTFilterCupy removed from graph for between comparison

Notes on used CPU and GPU

• Machine: LENOVO ThinkPad T15g Gen 1, Windows 11 Enterprise

• CPU: Core i9-10885H, 32 GB RAM

• GPU: NVIDIA GeForce RTX 2070 Super with Max-Q Design, 24 GB Memory

fft_batch_speeds.py

import time
import matplotlib.pylab as plt
import numpy as np
import qpretrieve
from qpretrieve.data_array_layout import convert_data_to_3d_array_layout
from qpretrieve.fourier import FFTFilterNumpy, FFTFilterPyFFTW, FFTFilterCupy

# load the experimental data
edata = np.load("./data/hologram_cell.npz")

n_transforms_list = [8, 16, 32, 64, 128]
subtract_mean = True
padding = True

# the first run is always used as a warmup
fft_interfaces = [FFTFilterNumpy, FFTFilterNumpy]
if FFTFilterPyFFTW is not None:
    fft_interfaces.extend([FFTFilterPyFFTW, FFTFilterPyFFTW])
if FFTFilterCupy is not None:
    # the third run is for the CPU Download
    fft_interfaces.extend([FFTFilterCupy, FFTFilterCupy, FFTFilterCupy])

filter_name = "disk"
filter_size = 1 / 2

# load and prep the data
data_2d, data_2d_bg = edata["data"].copy(), edata["bg_data"].copy()
input_data_3d, _ = convert_data_to_3d_array_layout(data_2d)
input_data_bg_3d, _ = convert_data_to_3d_array_layout(data_2d_bg)

speed_batch_norms, speed_ffts = {}, {}
print("Each `FFTFilter` will run twice, as the first run often needs to do "
      "extra tasks, such as module loading or PyFFTW wisdom generation.")
for i, fft_interface in enumerate(fft_interfaces):
    fft_iface_name = fft_interface.__name__
    results_batch, results_fft = {}, {}

    if "FFTFilterCupy" in fft_iface_name:
        qpretrieve.set_ndarray_backend("cupy")
        if i == len(fft_interfaces) - 1:
            fft_iface_name = fft_iface_name + " + CPU Download"
    else:
        qpretrieve.set_ndarray_backend("numpy")

    for n_transforms in n_transforms_list:
        print(f"Running {n_transforms} transforms with "
              f"{fft_iface_name}")

        # create batches
        data_3d = np.repeat(input_data_3d, repeats=n_transforms, axis=0)
        data_3d_bg = np.repeat(input_data_bg_3d, repeats=n_transforms, axis=0)

        assert data_3d.shape == data_3d_bg.shape == (
            n_transforms, edata["data"].shape[0], edata["data"].shape[1])

        t0 = time.perf_counter()
        holo = qpretrieve.OffAxisHologram(data=data_3d,
                                          fft_interface=fft_interface,
                                          subtract_mean=subtract_mean,
                                          padding=padding)

        t_fft = time.perf_counter() - t0
        holo.run_pipeline(filter_name=filter_name, filter_size=filter_size)
        bg = qpretrieve.OffAxisHologram(data=data_3d_bg,
                                        fft_interface=fft_interface)
        bg.process_like(holo)
        t_batch = time.perf_counter() - t0

        t_dwnld_fft, t_dwnld_fld = 0, 0
        if "CPU Download" in fft_iface_name:
            t_dwnld_0 = time.perf_counter()
            # example for getting an FFT array onto the CPU
            fft_cpu = holo.fft_filtered.get()
            t_dwnld_fft = time.perf_counter() - t_dwnld_0
            # example for getting a Field array onto the CPU
            field_cpu = holo.field.get()
            t_dwnld_fld = time.perf_counter() - t_dwnld_0

        # artifact occurs for batch 8 with cupy
        if n_transforms == 8 and "FFTFilterCupy" in fft_iface_name:
            results_batch[n_transforms] = 0
            results_fft[n_transforms] = 0
        else:
            results_batch[n_transforms] = t_batch + t_dwnld_fld
            results_fft[n_transforms] = t_fft + t_dwnld_fft

    speed_batch_norm = [t / bsize for bsize, t in results_batch.items()]
    speed_fft = [t for t in results_fft.values()]
    # the initial PyFFTW run (incl wisdom calc is overwritten here)
    speed_batch_norms[fft_iface_name] = speed_batch_norm
    speed_ffts[fft_iface_name] = speed_fft

# setup figure
width = 0.2  # the width of the bars
x_pos = np.arange(len(n_transforms_list))
n_labels_list = [str(n) + "*" if n == 8 else str(n) for n in n_transforms_list]
colors = ["darkmagenta", "lightseagreen", "goldenrod", "goldenrod"]
hatches = ["", "", "", "//"]
edgecolor = "k"
legend_loc = "upper center"
fontsize = 16

fig, axes = plt.subplots(2, 1, figsize=(8, 10))
ax1, ax2 = axes

# setup plot for batch speed comparison
multiplier = -0.5  # for the x_label positions
for (name, speed), color, hatch in zip(speed_batch_norms.items(),
                                       colors, hatches):
    offset = width * multiplier
    ax1.bar(x_pos + offset, speed, width, label=name,
            color=color, edgecolor=edgecolor, hatch=hatch)
    multiplier += 1
ax1.set_xticks(x_pos + width, labels=n_labels_list)
ax1.set_xlabel("Input hologram batch size")
ax1.set_ylabel("OAH processing time [Time / batch size] (s)")
ax1.legend(loc=legend_loc, fontsize="large")
ax1.set_title("Batch Process Time for Off-Axis Hologram "
              "(data+bg_data)\n(after PyFFTW warmup)", fontsize=fontsize)

# setup plot for fft speed comparison
multiplier = -0.5  # for the x_label positions
for (name, speed), color, hatch in zip(speed_ffts.items(), colors, hatches):
    offset = width * multiplier
    ax2.bar(x_pos + offset, speed, width, label=name,
            color=color, edgecolor=edgecolor, hatch=hatch)
    multiplier += 1
ax2.set_xticks(x_pos + width, labels=n_labels_list)
ax2.set_xlabel("Input hologram batch size")
ax2.set_ylabel("FFT processing time (s)")
ax2.legend(loc=legend_loc, fontsize="large")
ax2.set_title("FFT Speed for Off-Axis Hologram\n(after PyFFTW warmup)",
              fontsize=fontsize)

plt.tight_layout()
plt.show()
# plt.savefig("fft_batch_speeds.png", dpi=150)
